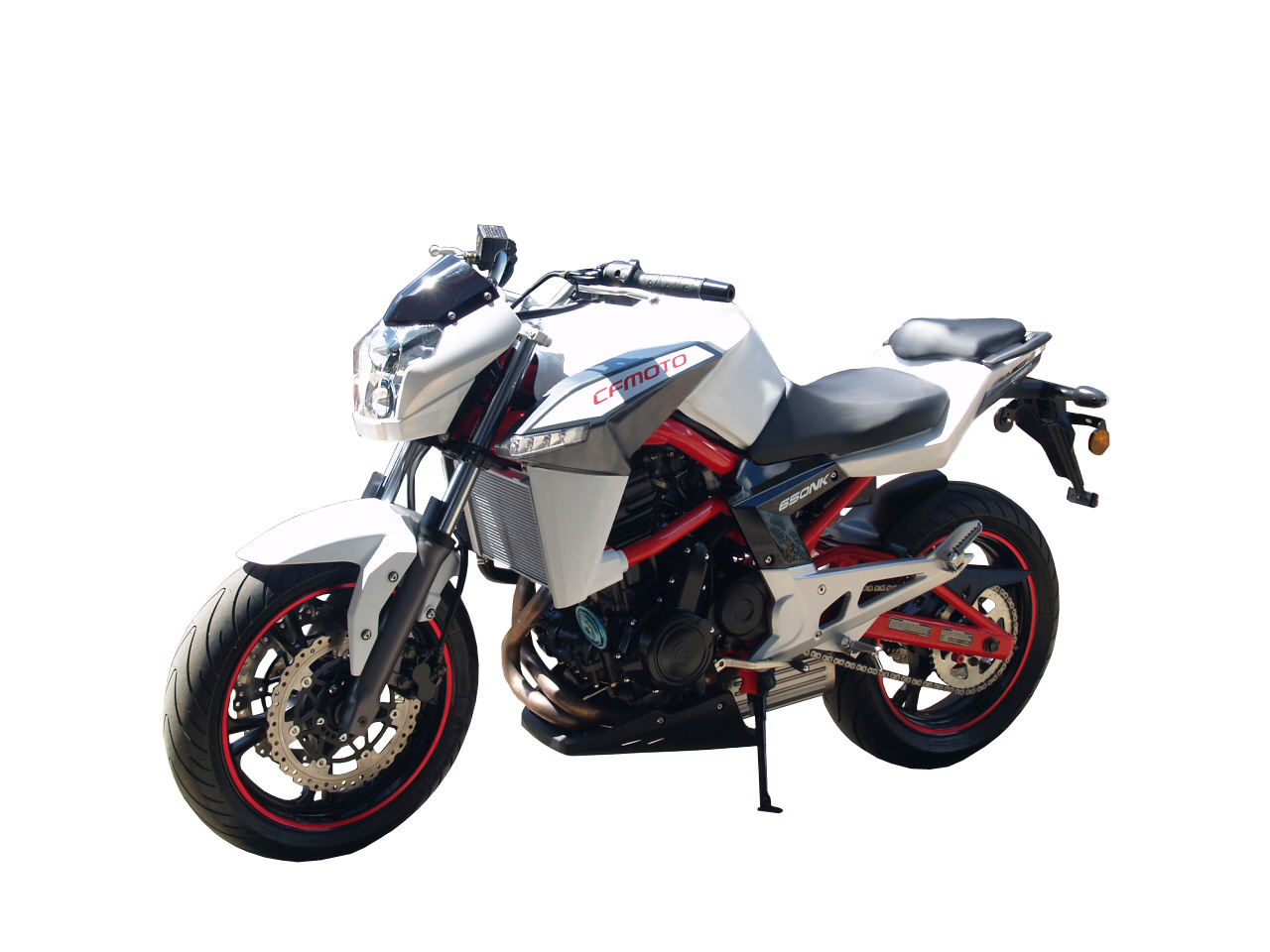

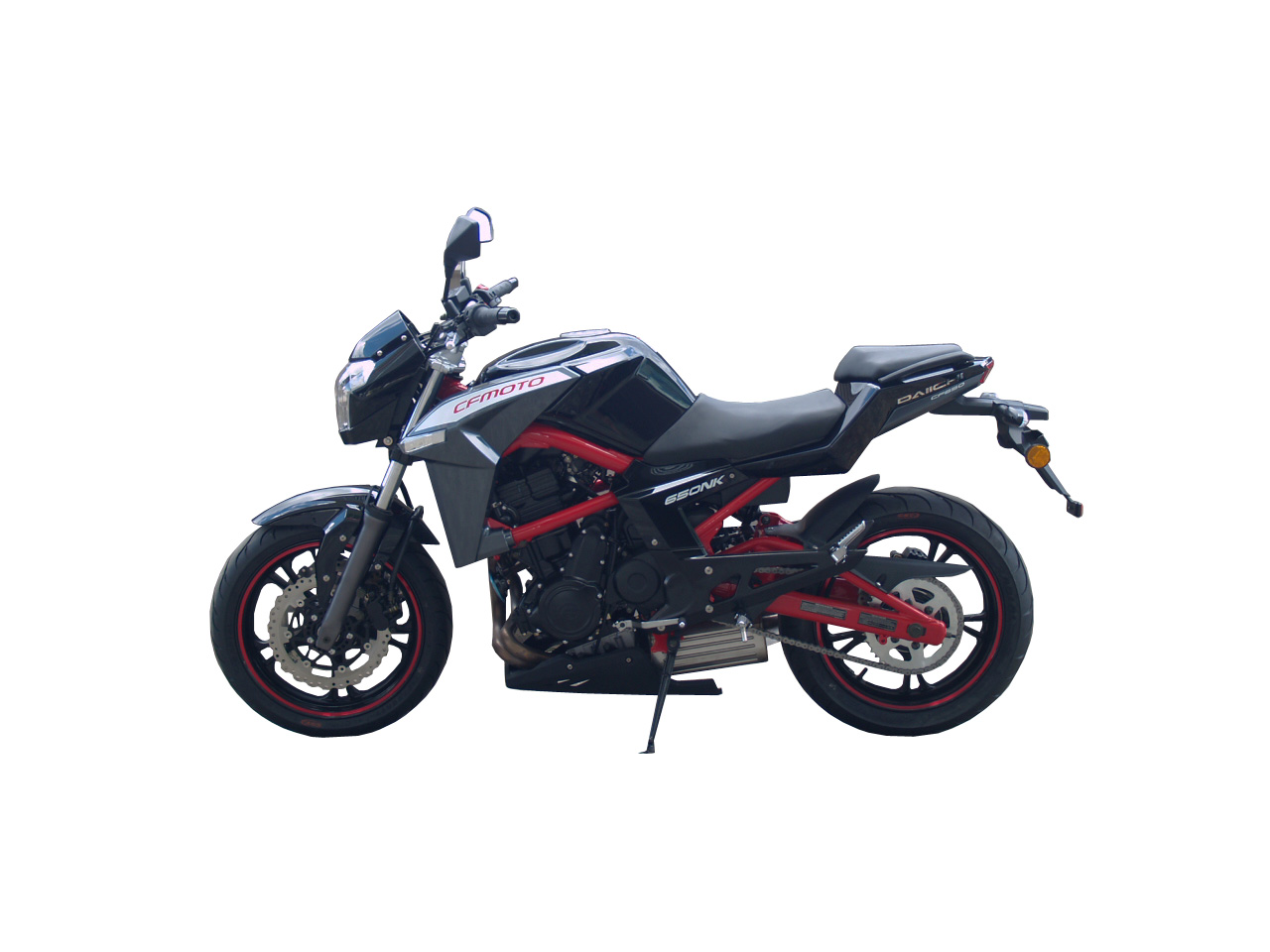

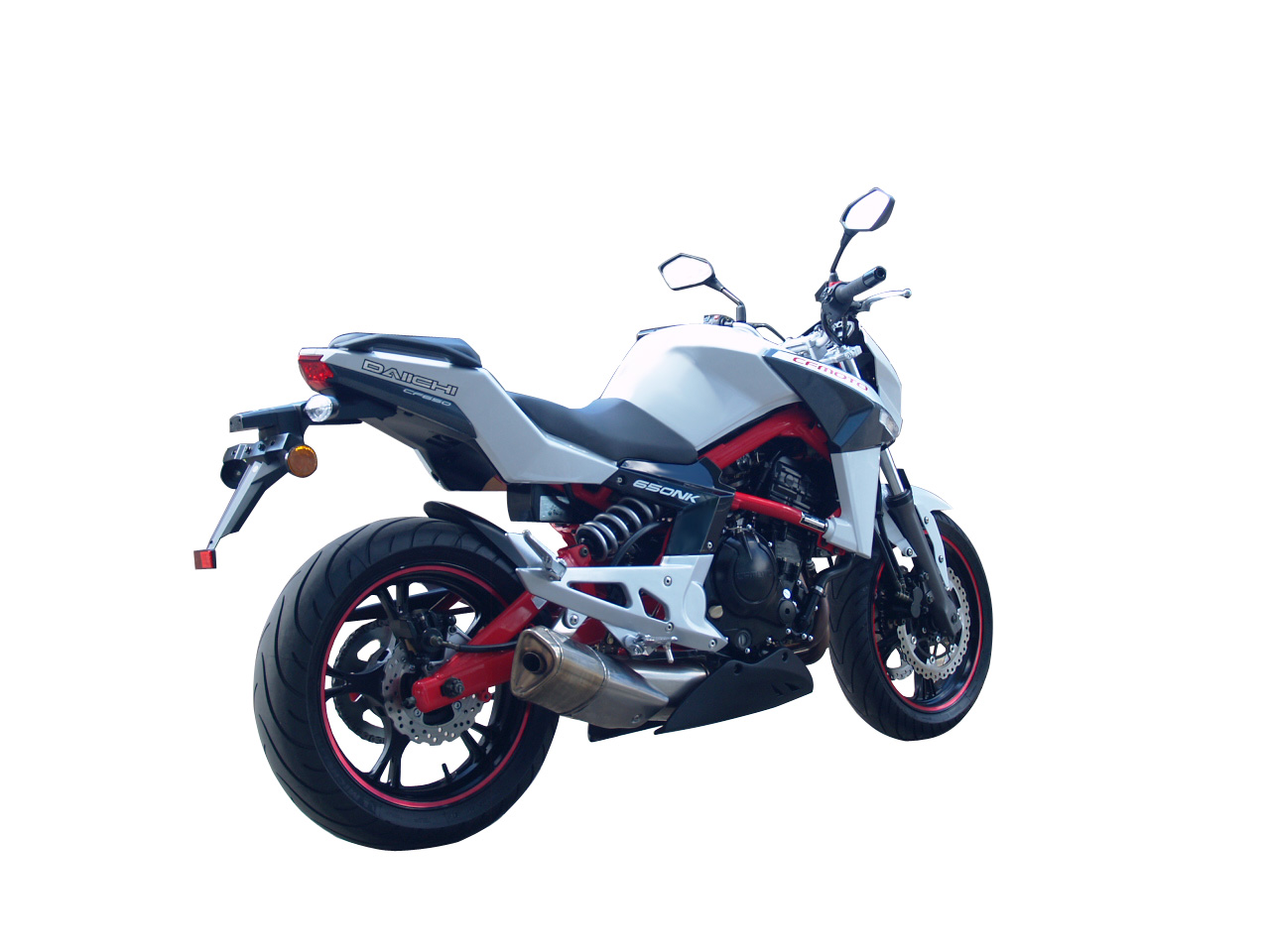

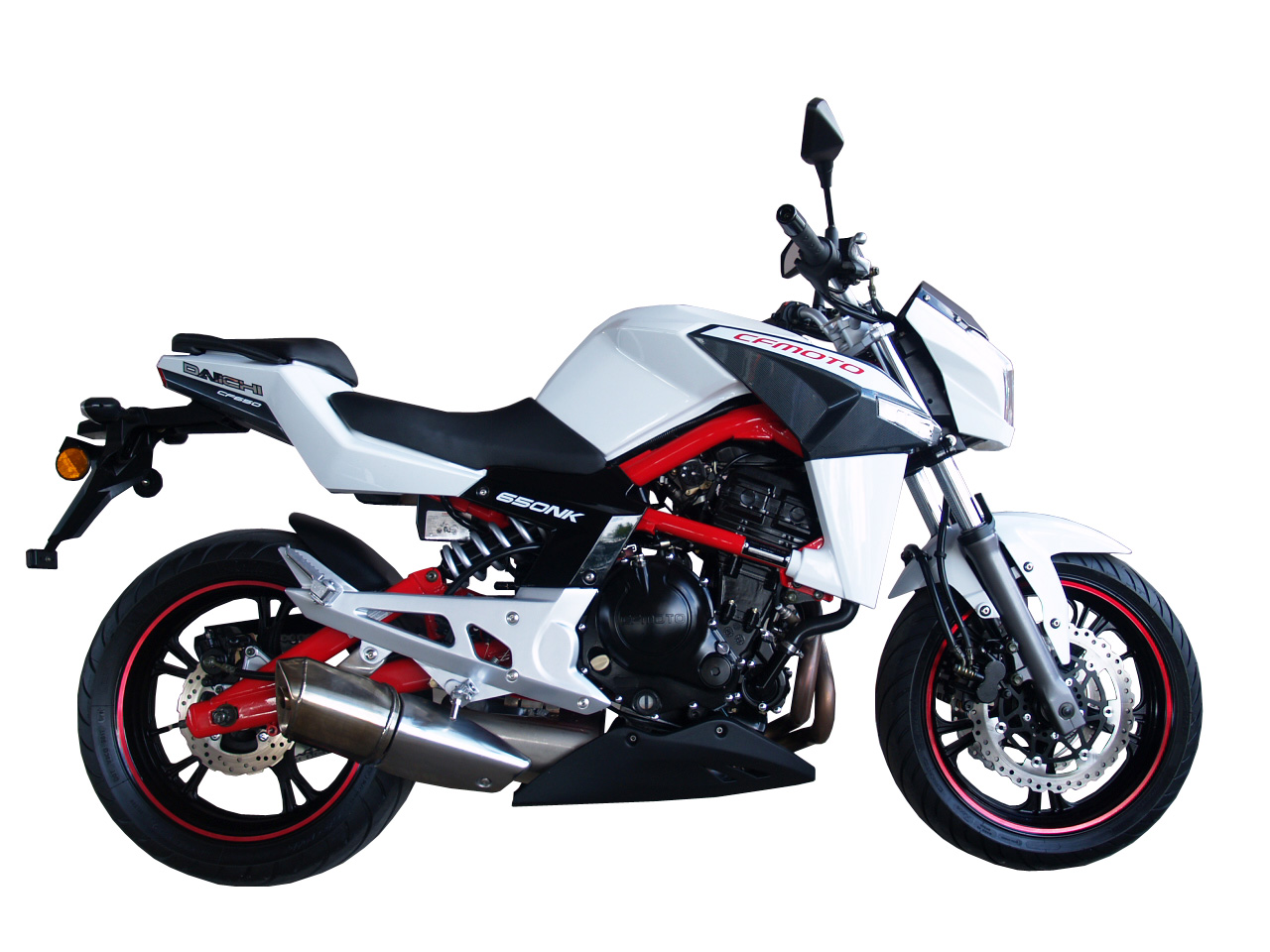

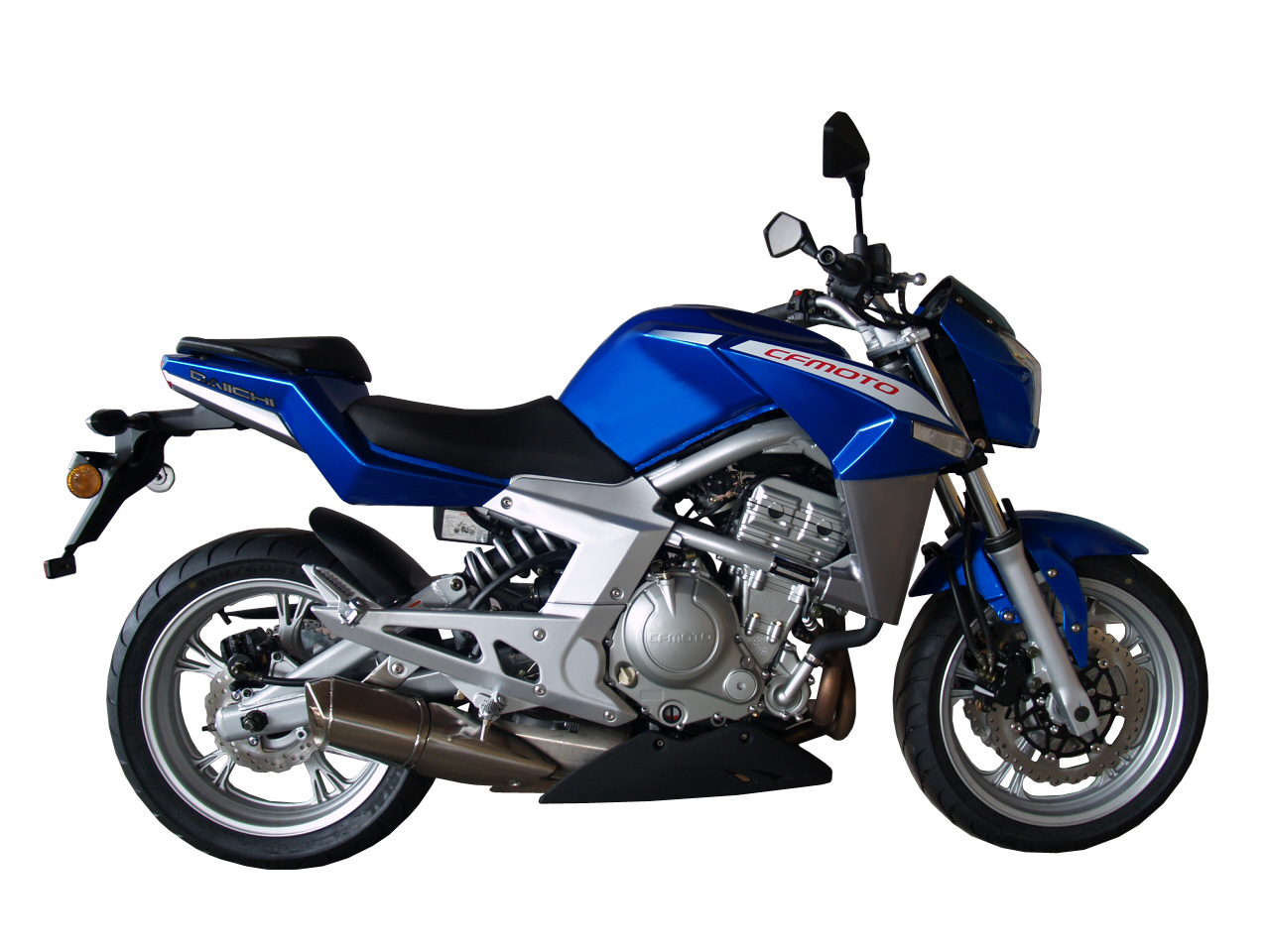

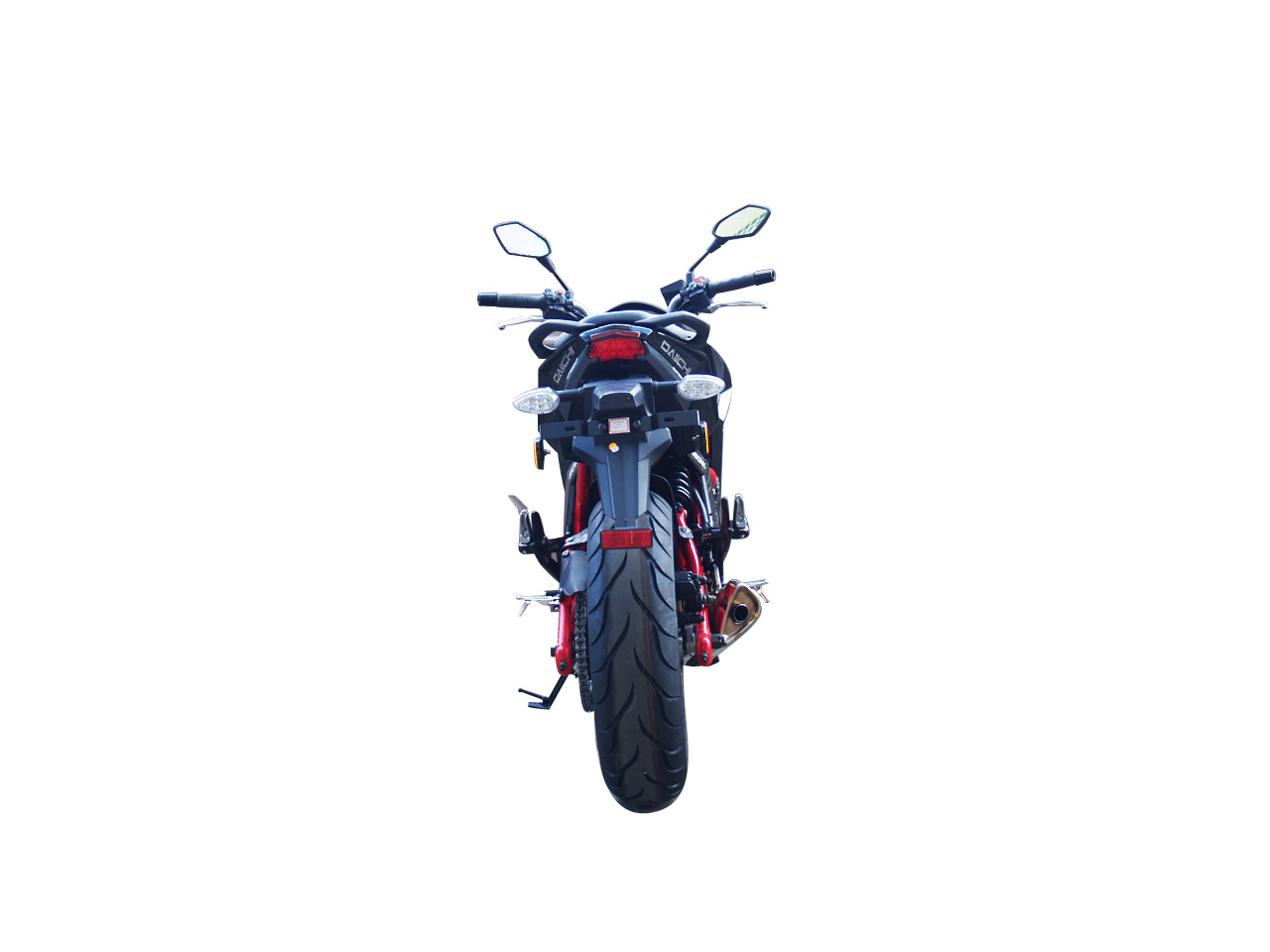

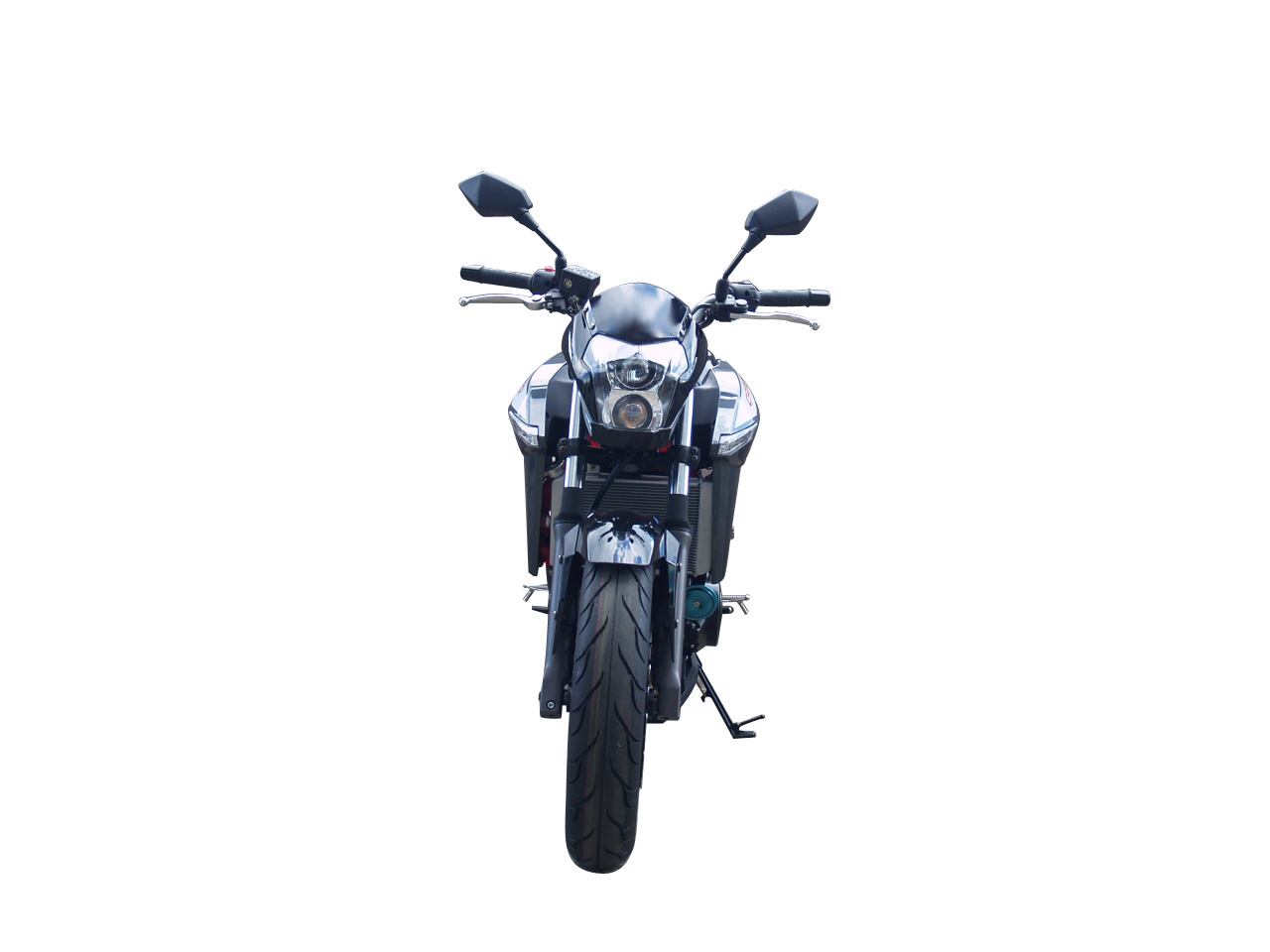

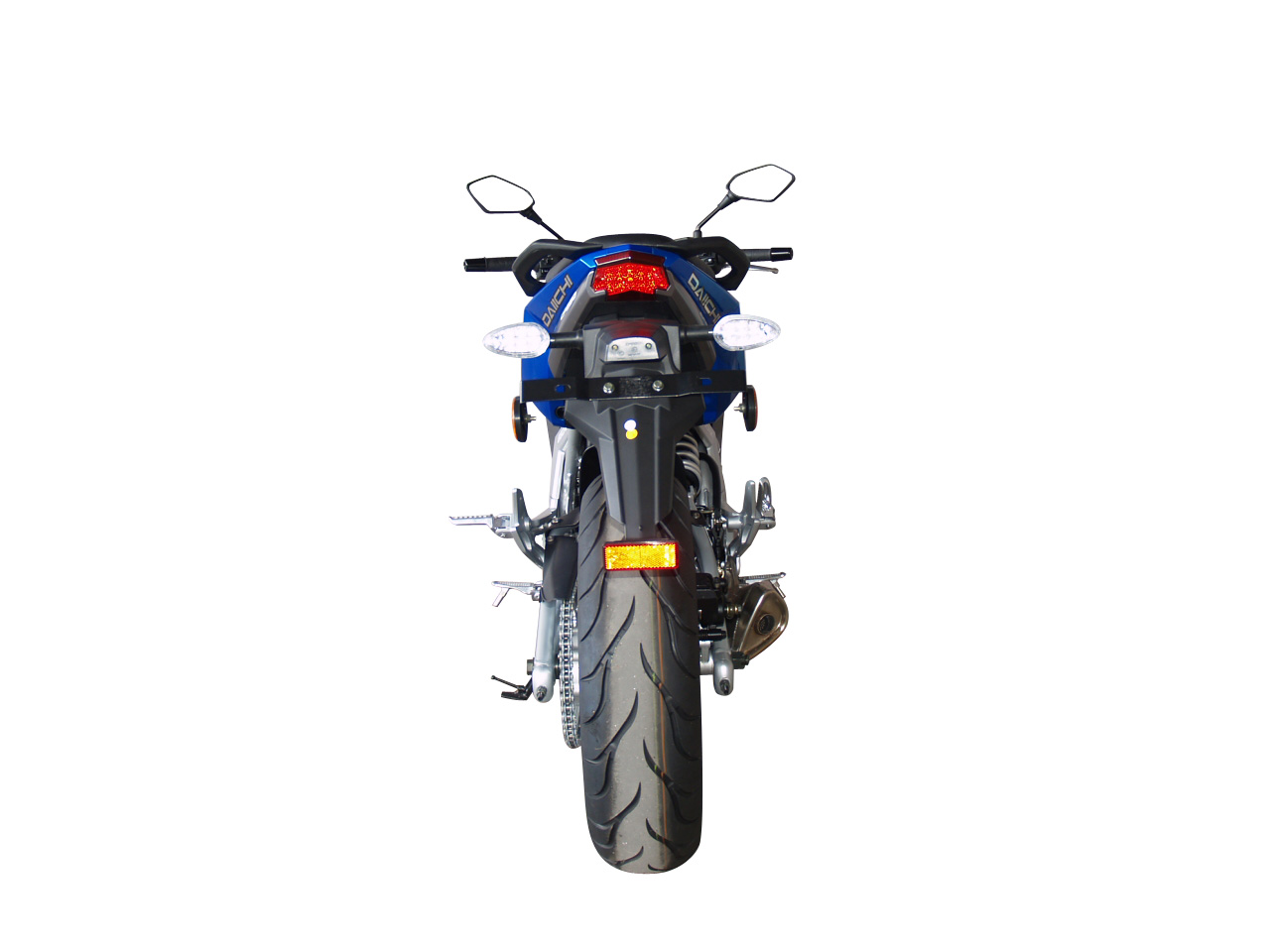

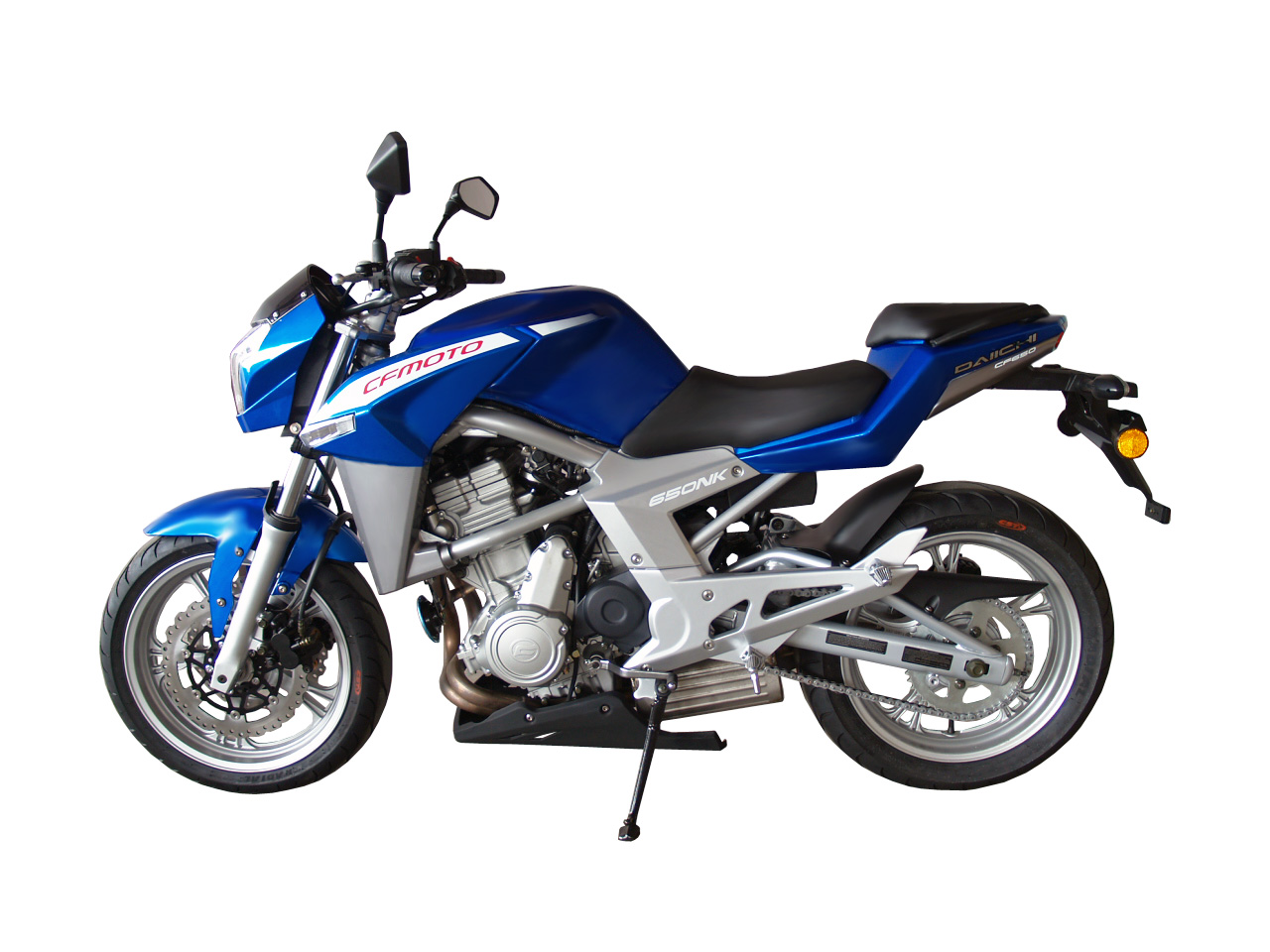

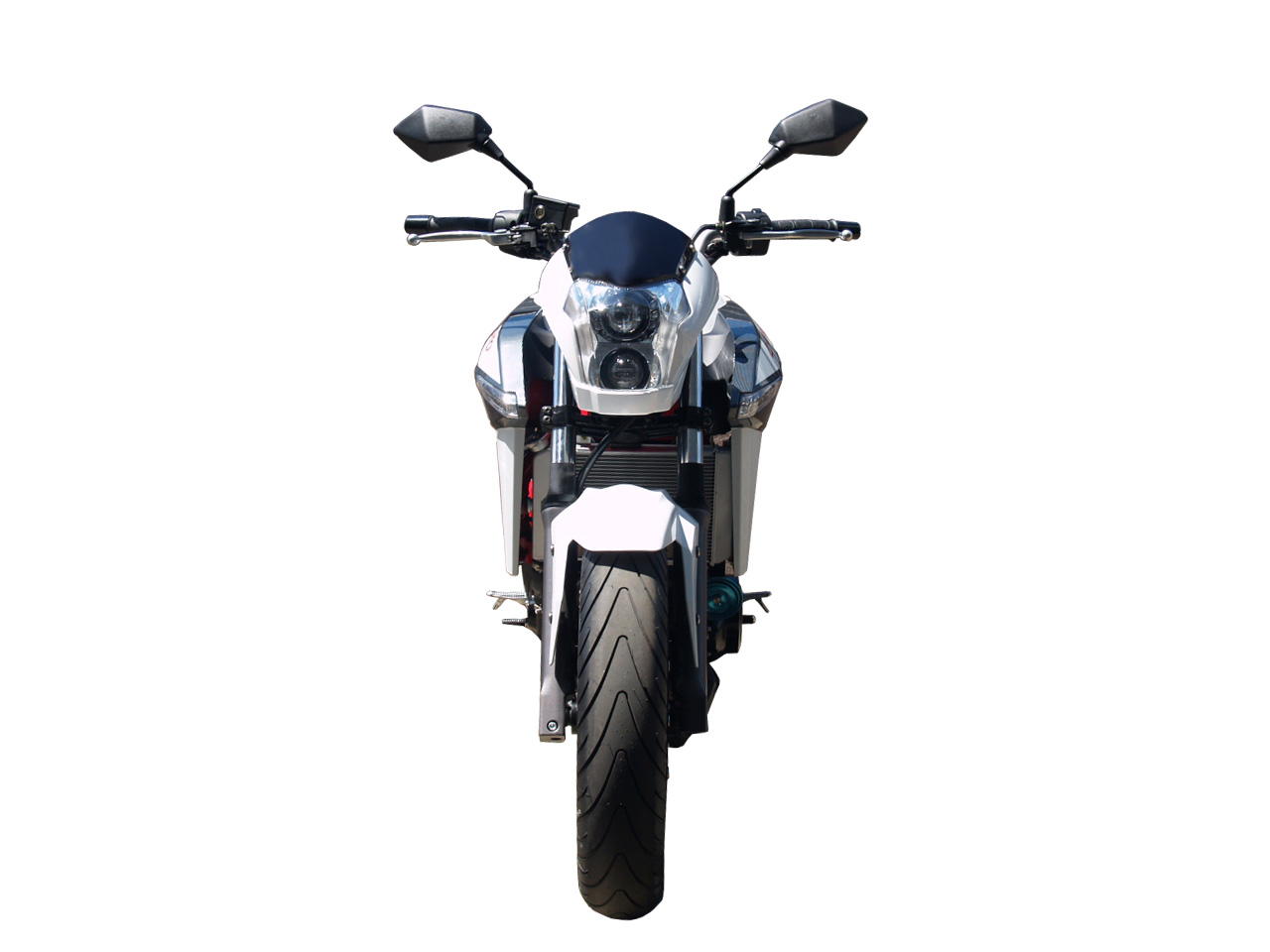

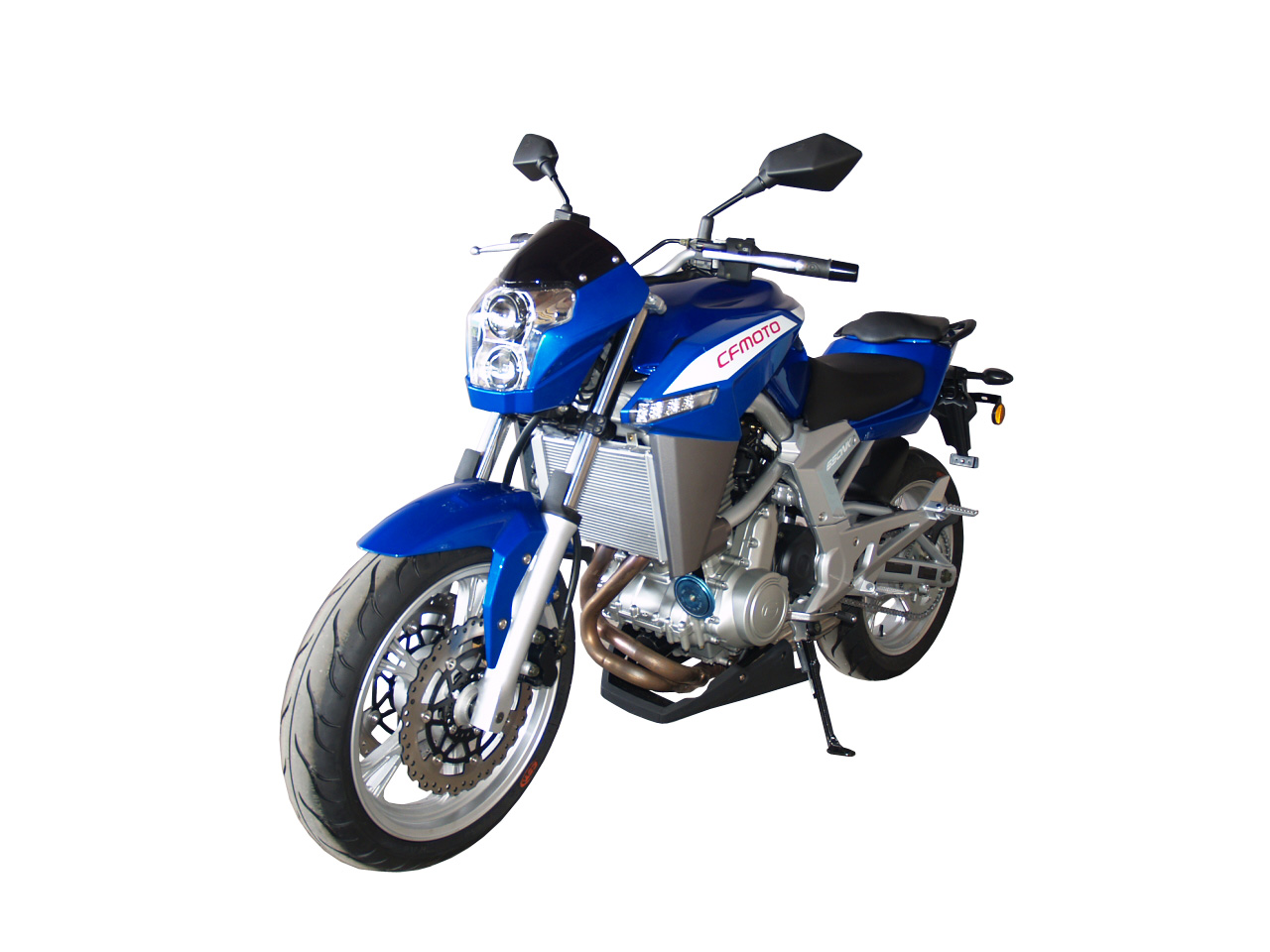

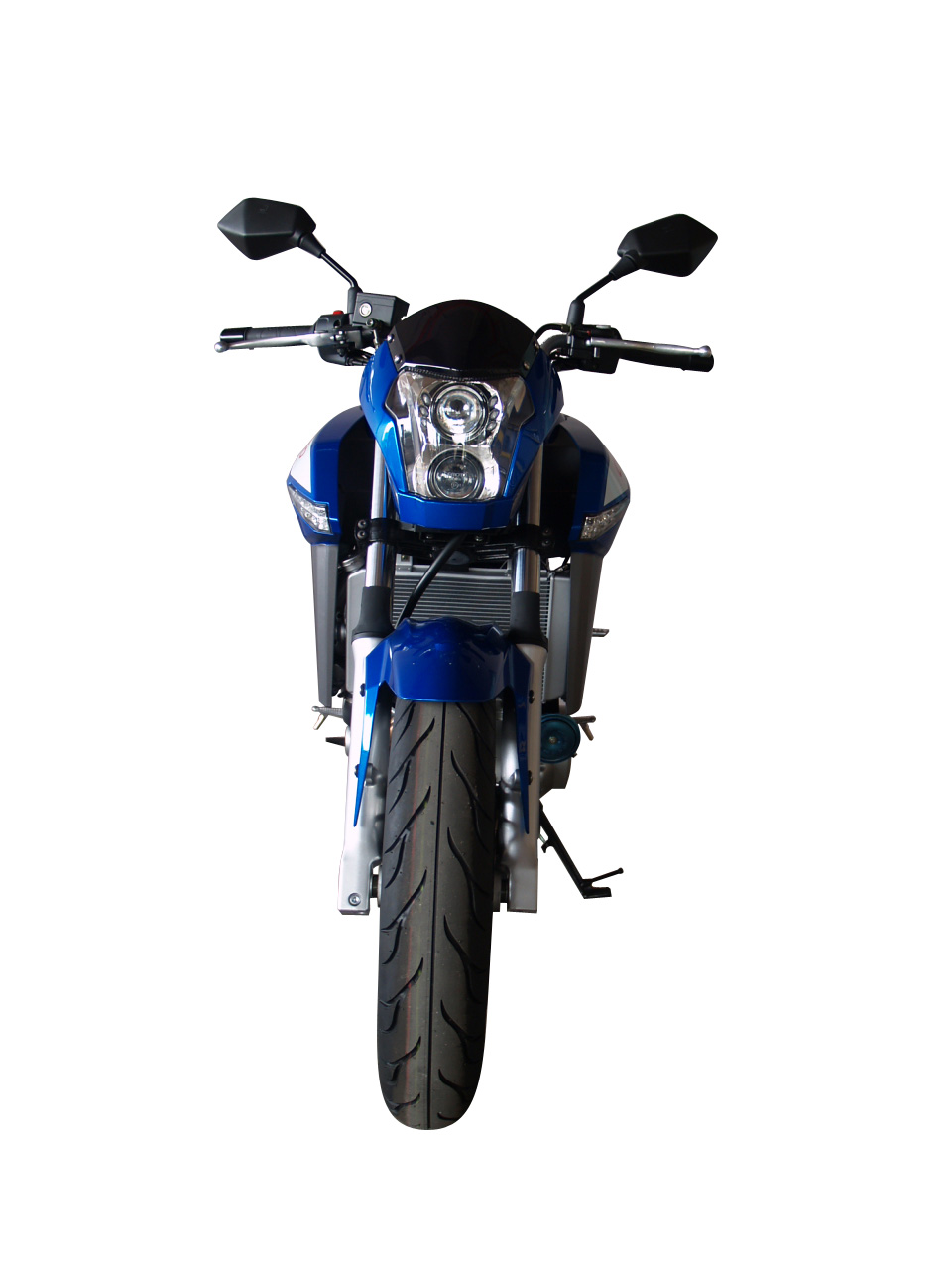

CFMOTO 650NK

slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1 slide 1

Specification



Engine
Type DOHC, Parallel Twin, 4-strokes, Water Cooled, 8 Valves
Cylinder 2
Bore & Stroke 83 mm x 60 mm
Displacement 649.3 mL
Compression Ratio 11.3 : 1
Starting Type Electric
Engine Oil Capacity 2.6 Litre
Transmission
Clutch Type Wet Types, Multi-Plates
Transmission 6 Speeds
Gear Ratio
First Gear 2.353
Second Gear 1.714
Third Gear 1.333
Fourth Gear 1.111
Fifth Gear 0.966
Sixth Gear 0.852
Transmission Ratio Of First Gear 2.095
Transmission Ratio Of Sixth Gear 3.067
Electrical
Ignition System ECU (Electric Control Unit)
Battery 12V10AH
Dimension
Overall Length 2120 mm
Overall Width 780 mm
Overall Height 1100 mm
Wheelbase 1415 mm
Seat Height 795 mm
Minimum Ground Clearance 150 mm
Net Weight 193 Kg
Chassis
Frame High-tensile steel diamond-type frame
Front Suspension KYB Hyrdraulic, oil mixed single rear shock
Rear Suspension KYB Spring, hydraulic damper sleeve type
Fuel Tank Capacity 17 Litre
Front Tire Size 120/70R17 (58H)
Rear Tire Size 160/60R17 (69H)
Caster Angle 24.5°
Front Brake 300 mm Dual Hydraulic Disc Brake
Rear Brake 220 mm Single Hydraulic Disc Brake
Performance
Maximum Speed 52 kw @ 8500 rpm
Maximum Torque 62 N.m @ 7000 rpm
