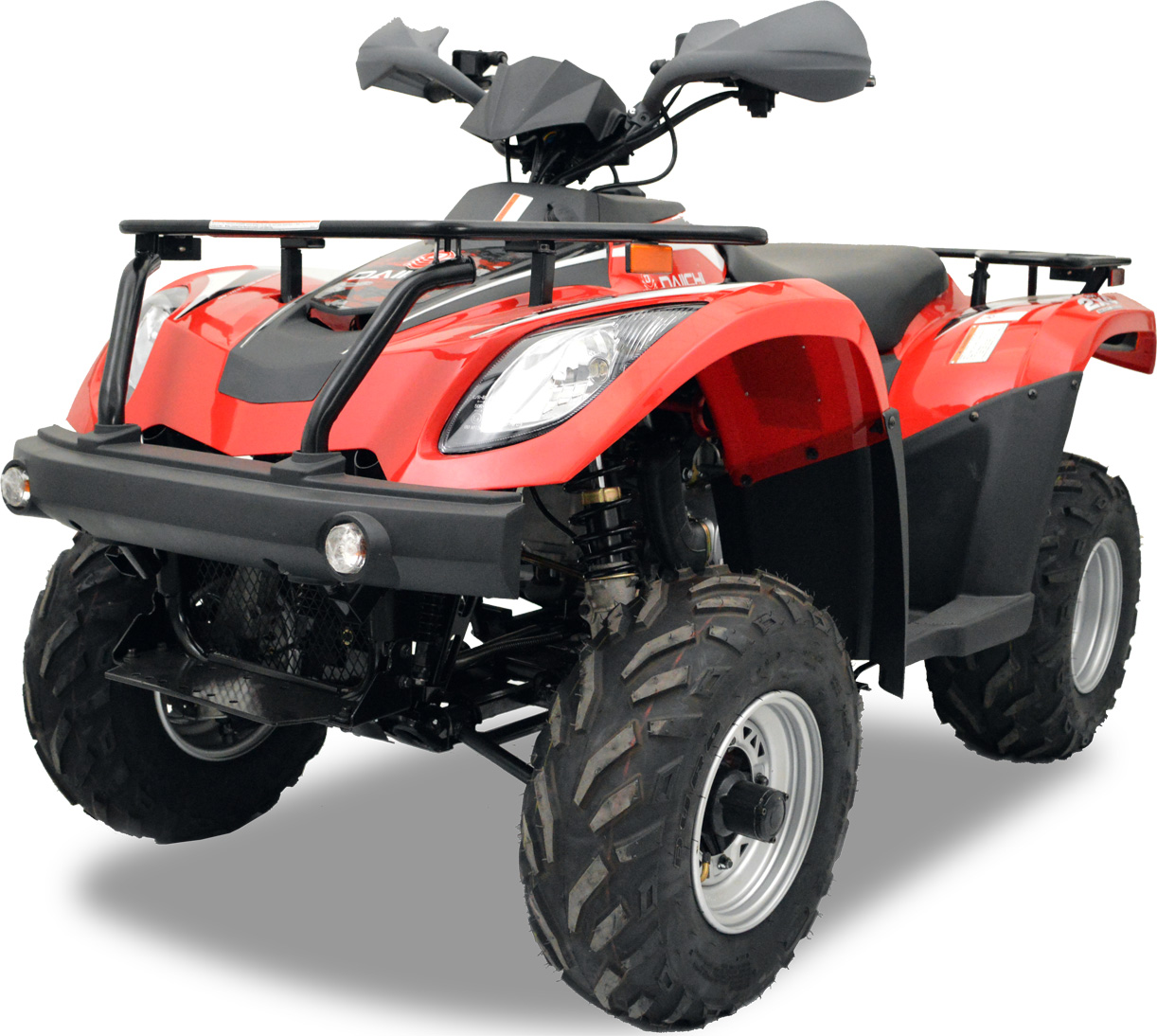

200 SE ATV

Based on demand, we are pleased to introduce the mid-size Linhai 200 ATV. This 2WD ATV features a 178cc air/oil cooled four-stroke engine, full auto CVT transmission (with reverse), front and rear disc brakes, front and rear racks, standard hand guards, dependable shaft drive, hitch mount, under seat storage, electric and pull start and more. This ATV is the perfect entry level, starter machine. It's lightweight and automatic transmission makes it easy to use, a blast to ride, yet with the racks and hitch, still capable of helping out with the chores.

slide 1

Specification



Engine
Type Four-stroke single
Bore & Stroke 62.5 mm x 57.8 mm
Displacement 177.3 cc
Starter system Electric start with pull backup
Cooling system Forced air and oil
Lubrication system Pressure and spray
Carburetor CVK
Ignition CDI
Spark plug NGK A7TC
Drive
Clutch Type Fully automatic
Transmission Automatic CVT with reverse
Final drive 2WD, shaft drive
Chassis
Brakes (front) Dual hydraulic disc
Brakes (rear) Dual hydraulic disc
Suspension (front) McPherson strut
Suspension (rear) Swing arm with adjustable pre-load
Tires
Tires (front) 22" x 7" ­ 10"
Tires (rear) 22" x 10" - 10"
Dimension
Overall Length 2006 mm (79")
Overall Width 1130 mm (44.5")
Overall Height 1168 mm (46")
Wheelbase 1207 mm (47.5")
Ground Clearance 152 mm (6")
Net Weight 236 kg (520 lbs)
Additional Information
Turning radius 3277mm (129")
Fuel capacity 14.2l (3.8 gal)
Front rack capacity 15 kg (33 lbs)
Rear rack capacity 25 kg (55 lbs)
Towing capacity 227 kg (500 lbs)
Additional features (SE package) Aluminum wheels, SE graphics, hand guards
